The Story
Grand Canyon HCSPK High Capacity Safety Pilot Kit provides a premium high-capacity safety pilot control for your vented gas appliance. The reliable design and heavy-duty construction ensure a long-lasting, durable product that includes the necessary components to enhance your fire feature.
This unit requires the turn of a knob to light your main burner and adjust your flame height. This kit will regulate the gas flow of your appliance which has a maximum BTU rating of 142,000.
The high-capacity safety pilot offers natural gas or propane options and can be used with all Grand Canyon 3 Burner systems greater than 30 inches and all Jumbo Burners.
Add 6 inches to the front width for proper centering of the appliance.
Please Note: This kit operates with a manual operating system and you can use GCRK (On/Off) remote and GCWS (On/Off) Wall Switch (Not included - Sold separately).
Features
- Fuel Type - Natural Gas or Propane
- Safety Pilot Kit - Safely light your burner and control your flame height with the turn of a knob
- BTU - 142,000 max (High Capacity)
- Burner Compatibility - Grand Canyon 3 Burner systems greater than 30-Inches and ALL Jumbo Burners

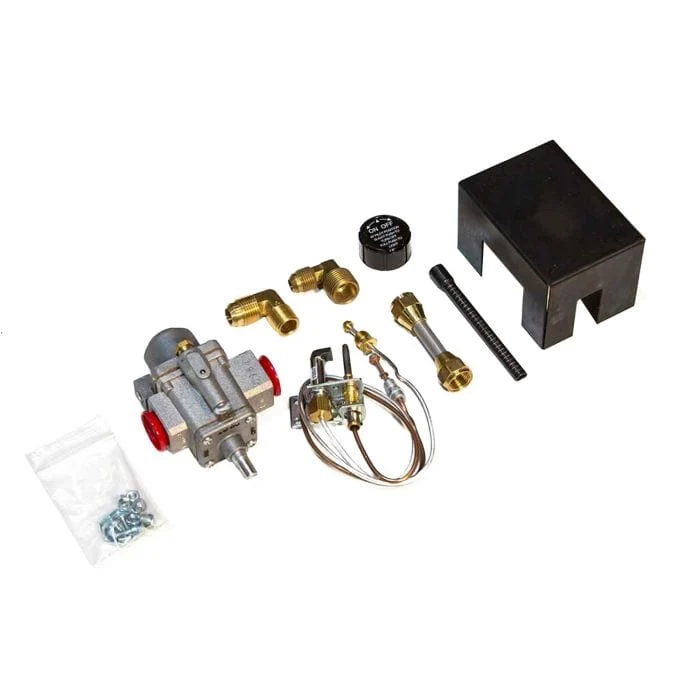

- Includes: Valve, Pilot Assembly/Bracket, Black Knob, Heat Shield, Swivel Connector, Various Fittings, and Screws (Vermiculite Lp Only).
| Specifications | |||||
| Manufacturer | SKU Number | Max Inlet | Valve Temp | BTU | For Use With (Burner Model) |
| Grand Canyon |
HCSPK-N |
14” W.C. | 250° | Up to 124K BTU (NG) | 2-Burner / Glass / Kiva - 18" to 42", 3-Burner - 18" to 30" and Jumbo / Jumbo Slimline - 24" - 30" (NG) |
| Grand Canyon | HCSPK-LP | 14” W.C. | 250° |
Up to 200K BTU (LP) |
2-Burner / Glass / Kiva - 18" to 60", 3-Burner - 18" to 30", and Jumbo / Jumbo Slimline - 24"- 48"(LP) |
Downloads
Vented Control Valve Features and Breakdown
Grand Canyon Indoor Catalog
